BENZ IR NEC Key programmer with ESL for BENZ from 1997-2005

Be the first to review this product

Availability: In stock

$79.00
Free Shipping
SKU: TSS-0244
OR

Quick Overview

BENZ IR NEC Key programmer with ESL for BENZ from 1997-2005


The new Mercedes device is working with smart key (old and new) used since 1997 up to 2005 (without
Key Less Go system). You can program new key (or used one) in car and program own key if it can not work more.




BENZ IR NEC Key programmer with ESL for BENZ from 1997-2005

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

BENZ IR NEC Key programmer with ESL for BENZ from 1997-2005

BENZ IR NEC Key programmer with ESL Instruction:

You read and program eeprom of CPU from Steering blocking module via diagnostic connector (38 pins).
Desolder and read in programming tool two CPU from Electronic Ignition Control Module. Load these eeproms to program.
Desolder NEC CPU from the key. Solder it on the device , select the No of key and program it. Solder all CPUs on their places and start the car.
You can program new keys without the car - only with EIS and steering blocking modules.
You can read these CPUs with help programming tool (for ex. ETL) for Motorolla CPU 68HC705X16(32).

Current features:

- Easy and convenient generator of microprocessor software dumps
- Support of keys based on the NEC controller. Such as 0x28, 0x35, 0x40, 0x51, 0x57, 0x61, 0x71, 0x81, 0x229.
- Ability to check status and proper operation of Electronic Steering Lock (ESL)
- Ability to program ESL right on a car (No need to replace it)

Supported Vehicles:

- W202 (MC68HC05X32 x 2 controller)
- W203 (MC68HC908AZ60 controller)
- W208 (MC68HC05X32 x 2 controller)
- W209 (MC9S12DG128 controller)
- W210 (MC68HC05X32 x 2 controller)
- W211 (MC68HC912DG128A controller)
- W215 (MC68HC908AZ60 controller)
- W220 (MC68HC908AZ60, MC68HC05X32 x 2 controller)
- W230 (MC68HC908AZ60, MC68HC05X32 x 2 controller)
- W639 Vito (MC68HC908AZ60 controller)

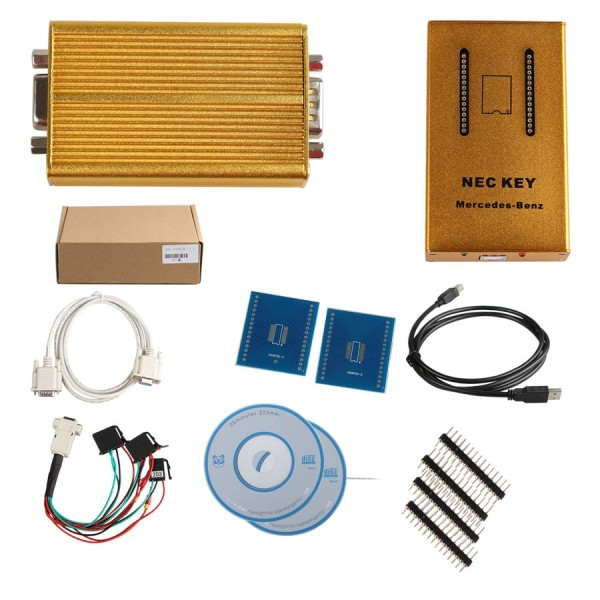

MB Keyprog consists of:

- NEC controller programming tool
- ESL (Electronic Steering Lock) programmer (via K-Line)
- EEPROM Calculator (Calculator for microcontroller software dumps): EIS, ESL,
ESM.
- Adapter to work with NEC controllers (for soldering)
- USB-cable
- K-Line Cable + Modul
- Diagnostic cable (38 pin)
- ESL cable: 3 pin, 4 pin, 5 pin.

Package Including:

1pc x BENZ IR NEC Key programmer with ESL

Additional Information

Condition N/A
Brand N/A
Compatible Model N/A
Manufacturer Part Number N/A
Type N/A
Color N/A
Size N/A
Weight (Kg) 0.5000
Material N/A
Battery Info N/A
Number in Pack N/A
