Carworth C100-D 24V Diesel Universal OBDII Scanner Diagnose Diesel Control Systems

Be the first to review this product

Availability: Out of stock

$249.00
SKU: TSS-0101

Quick Overview

Carworth C100-D 24V Diesel Universal OBDII Scanner Diagnose Diesel Control Systems



C100-D be designed full of fashion, elegant,and it is easy to carry, it have reading DTCs, clearing DTCs, reading data stream, actuation test functions for 24V Diesel Heavy duty. It is of Easy operation, plug and play ECU can quickly diagnose the cause of the fault and displayed the fault information clearly in text form, and thus discover hidden vehicles which will provide security for the driving.

Carworth C100-D 24V Diesel Universal OBDII Scanner Diagnose Diesel Control Systems

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Carworth C100-D 24V Diesel Universal OBDII Scanner Diagnose Diesel Control Systems

Carworth Vehicle Coverage:

Engine:
Ankai,Arf,Astra,Benz,Foton,Cat,Chaochai, Sinotruck,Dacai,Daf,Dfm,Dongfeng,Doosan,VW Jetta,,JMC,CUMMINS,LAIYANG,MACK,MAN,IVECO,QUANC,RENAULT,SANY,SCANIA,SUNLONG,TOYOTO,UD,VOLVO,WEICHAI,xce,xicai,Nissan,YUCAI
Excavator :
Altas,BOBCAT,CASE,KOBELCO,DASIN,DBC,HITACHI,HYUNDAI,INISCE,KATO,XIAGONG,SUNTON,SUMIT

Support ECU Manufacturers Including:

Bosch, Cummins, Caterpillar, Denso, Siemens, Motorola, Zexel, VITO, NanYue, Delphi, Wabco...

OBDII Diesel Scanner Carworth C100-D Features and Benefits:

Support for all standard models of OBD-II interface
Support trouble shooting all electrical control systems.
By reading the trouble code feature, you can quickly and accurately obtain the reasons of electronic control system (ECU) fault lights reasons.
A key to the elimination of the electronic control system (ECU) temporary failure exists, fault light extinguished.
Real-time display condition information, including engine speed, intake air pressure, acceleration performance, coolant temperature, oxygen sensor voltage and other information in order to analyze the reasons for failure in the technician or vehicle owner Product packaging and appearance.

Support Function:

Read DTC, Read Engine Model, Read Computer Edition Information, Read QR code, Read System parameter number, Read Data Stream, Clear DTC, Read-in QR Code, Component test, Cut off Cylinder Test, Compression Test, Injector Test, Maintenance Help, Study on line and so on some/ most models .

Supported Protocols

ISO14230 (KWP2000)
ISO9141
SAE J1850 (PWM)
SAE J1850 (VPW)
J1939 (CAN)
IS014229 (UDS CAN)
BENZ-9BIT
Flash Code Protocol
SAE J1708

Technical Parameters

Host Parameters

1. CPU dual-core architecture CORTEX M3 + ARM9 400M clocked
2. built-in Built-in high-capacity 8G TF card
3. Power supply 9-36(VDC)
4. Port OBD16
5. System Memory 64M SDRAM
6. Monitor 2.8-inch TFT LCD true color touch
7. Resolution 320 × 240,24-bit
8. weight 0.3kg
9. Dimensions 13.2×8.6×2.0cm
10. Storage Temperature -30~45℃
11. Operating Temperature -10~45℃
12 .Humidity <90

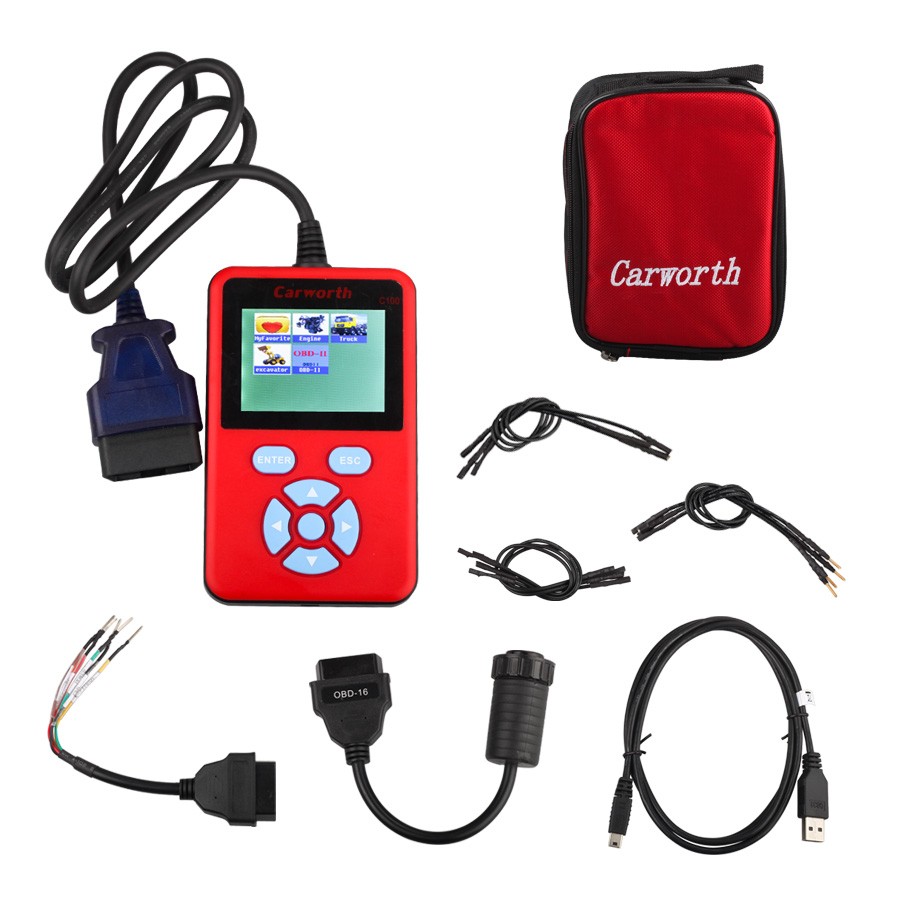

Package Including:

1pc x C100-A Main unit
1pc x OBD2 Cable for Heavy duty
1pc x USB Cable
5pcs x Connect Cable
1pc x Carry Bag

Weight: 0.7KG ( 1.54LB )
Package: 21.5cm*13.5cm*6cm ( Inch: 8.46*5.31*2.36 )
