Hino-Bowie Hino Diagnostic Explorer

Be the first to review this product

Availability: In stock

$294.30
SKU: TSS-H005
OR

Quick Overview

HINO Diagnostic Explorer (hereafter referred to as HINO DX) is a tool equipped with all the functions needed to diagnose trouble, check functions, and configure the settings of the electronic systems built into HINO engines.

Hino-Bowie Hino Diagnostic Explorer

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Hino-Bowie Hino Diagnostic Explorer

Software Version: V2.0.2
System Require: Win XP
Language: English, Chinese
Update: By CD


Main function:

- Acquires and deletes trouble data.

- Links diagnostic trouble codes read from the ECU to corresponding diagnostic work flow sequences and directly displays the required data.

- Obtains sensor conditions from the vehicle when trouble occurs (Freeze Frame function).

- Monitors the sensors and actuators equipped on the engine (Data Monitor function) and tests the operation of solenoid valves by forcefully operating them (Active Test function).

- Simulates diagnostic work with only a PC(Simulation function).

- Automatically saves fetched ECU data and analyzes trouble based on the saved data even when the cause of trouble cannot be grasped.

Car list and function of every car model:

1.Aisin Transmission data viewing and diagnostics-2001-2007 Model Years
Display and Clear Diagnostic Codes
Display live data for diagnosis

2.MDTICs Engine data viewing and diagnostics-2001-2004 Model Years
Display and Clear Diagnostic Codes
Display live data for diagnosis

3.J05 & J08 Engine data viewing and diagnostics 2005-2008 Model Years
Display and Clear Diagnostic Codes
Display live data for diagnosis-Specific data can be selected

4.Full Customization Capability
Turn on Engine Protection Shutdown System
Set Maximum Vehicle Speed
Set Maximum Cruise Control Speed
Set PTO idle speeds fixed and variable
Change Injector Calibration QR Code when replacing injectors
Supply Pump relearning when replacing SCV or supply pump
Complete DPF testing and regeneration capabillity
Built in Help Menus for troubleshooting specific diagnostics

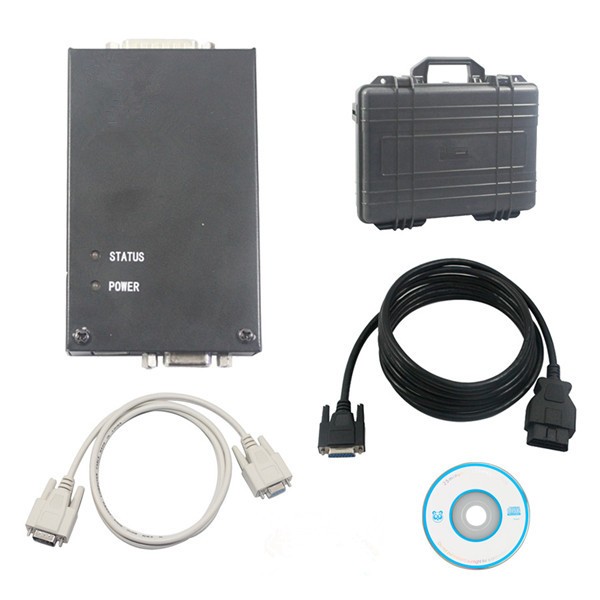

Package:

1pc x Diagnostic interface (part number:09993E9070)
1pcx Diagnostic cable OBD-II (part number:09042-1220)
1pc x Diagnostic Software CD

Additional Information

Condition N/A
Brand N/A
Compatible Model N/A
Manufacturer Part Number N/A
Type N/A
Color N/A
Size N/A
Weight (Kg) 5.5000
Material N/A
Battery Info N/A
Number in Pack N/A
