V2.13 FW V7.003 KTM100 KTAG ECU Programming Tool Master with Unlimited Token

V2.13 FW V7.003 KTM100 KTAG ECU Programming Tool Master with Unlimited Token

Why to choose V2.13 KTM100 KTAG:

1. Software V2.13, Hardware Version V7.003
2. Multi-Language Support: English, Italian, Portuguese (If you need other languages, please feel free to contact us)
3. Support BDM Function Well, Available Protocols BDM MOTOROLA MPC5xx
4. Support both Car, Motorcyle and Truck ECU Programming

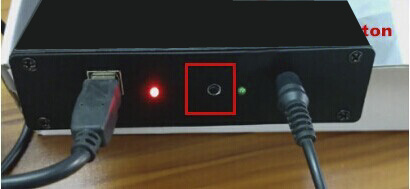

5. V2.13 KTAG Has Unlimited Tokens, We Add a Renew Button, when you run out of tokens, only need press the renew button, then you will have tokens again.

6. KTM100 Ktag Newly Add Encrypted ECU As Below:
BMW:
EDC17C41 TC1797
EDC17CP45 TC1797
EDC17C50 TC1797
EDC17C56 TC1797
EDC17CP49 TC1797
MEVD172G TC1797
MEDV1725 TC1797

VW:
EDC17C46 TC1797
EDC17C44 TC1797
MED17.1.6 TC1797
MED17.5.21 TC1782
MED17.5.5 TC1767
ME17.5.24 TC1724
MED17.1.1 TC1797

Volvo:
EDC17CP48 TC1797

Jaguar:
MED17.8.31 TC1797

Opel:
EDC17C59 TC1767

Mercedes:
EDC17C46 TC1797
MED17.7.2 TC1797
EDC17CP57 TC1793
EDC17C66 TC1793

Ford:
EDC17C10 TC1797

Ferrari:
MED17.3.4 TC1797

McLaren:
ME17.8.3 TC1797

Renault
ME17.9.20 TC1782

Usage Notice:
1. Please Only Use Our Software
2. Operating System: Better to Use Win XP
3. Please Disconnect Internet While Using KTAG, Otherwise It Will Get Damaged

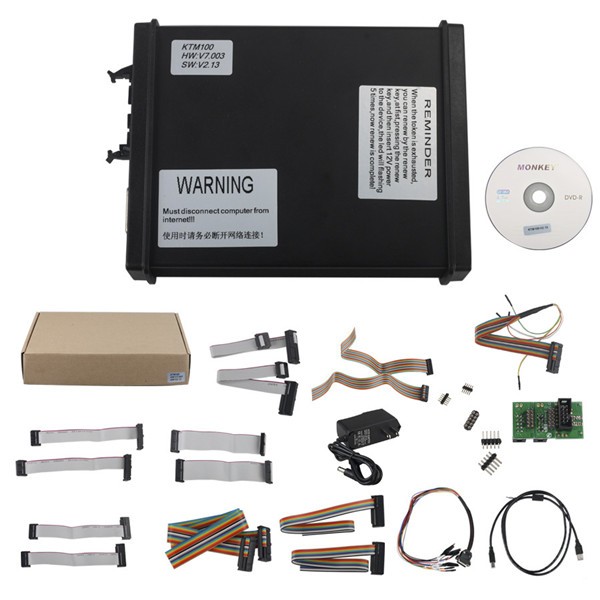

KTM100 KTAG Connection Picture Display:

V2.13 KTM100 KTAG Description:

The new KTM100 K-TAG is 100% J-Tag compatible, but in a completely different way. Usually J-Tag programmers are available only for big productions, never present in chiptuning devices. Using only the essential components, Alientech have merged J-Tag, Motorola BDM/Nexus and Bootloader Mitsubishi/Infineon Tricore/ST communication lines into a single product.

V2.13 KTM100 K-TAG works in perfect harmony. Learn how to use K-TAG takes almost no time, because all the communication protocols operate along similar principles. Once you have learned to use a protocol, you will naturally use all the others. Alientech knows what it means to work in motion. For this reason the research methods of the protocols and choice of vehicles are detailed and ordered.

Unlike many ECU programming tools, with K-TAG you have at your disposal only the applications you really need. Once you have the hardware, you can choose which group of protocols to enable and then start working. In this page you can find a complete list of the ECU currently supported by K-TAG.

Cables From Left to Right:

1.GREEN-CAN L
2.ORANGE-VKEY
3.YELLOW-K LINE
4.ORANGE-VKEY
5. RED-VECU
6.BLACK-GND
7.BLACK-GND
8.PURPLE-VPP
9.RED-VECU
10.WHITE-CAN H

TYPE BRAND ECU ECU_TYPE K-TAG

Car FORD BOSCH EDC 16C34-2.20 1060
Car FIAT BOSCH EDC 16C39 1070
Car SEAT BOSCH EDC16 1002
Car SKODA BOSCH EDC16 1002
Car VOLKSWAGEN BOSCH EDC16 1002
Car Mercedes BOSCH EDC16 C2 1004
Car BMW BOSCH EDC16 C31 1003
Car Mercedes BOSCH EDC16 C31 1004

J-TAG NEXUS MPC5xx

TYPE BRAND ECU ECU_TYPE K-TAG
Car CITROEN DELPHI DCM3.5 244
Car FORD DELPHI DCM3.5 244
Car Mercedes DELPHI DCM3.5 248
Car JEEP DELPHI DCM3.5 - CRD2 248
Car FIAT MARELLI 7GF 247
Car SUZUKI MARELLI 8DS 364
Car Abarth MARELLI 8GMF 243

J-TAG RENESAS SH705x

TYPE BRAND ECU ECU_TYPE K-TAG
Car CITROEN DELPHI DCM3.4 257
Car PEUGEOT DELPHI DCM3.4 257
Car DACIA DELPHI DCM3.4 258
Car NISSAN DELPHI DCM3.4 258
Car RENAULT DELPHI DCM3.4 258
Car PEUGEOT DELPHI DCM3.4 362
Car SUZUKI DENSO 057L1 370
Car SUZUKI DENSO 062J0 262

BOOTLOADER MITSUBISHI MH72xx/MH8xx

TYPE BRAND ECU ECU_TYPE K-TAG
Car Kia KEFIKO EH8 317
Car Kia KEFIKO KTS3 351
Car Mitsubishi MELCO G1Tx 350
Car Mitsubishi MELCO MH72XX 259
Car Volvo MELCO MH72XX 259
Car Mitsubishi MELCO MH72XX 260
Car Mitsubishi MELCO MH72XX 297
Car Mitsubishi MELCO MH72XX 318
Car Mitsubishi MELCO MH8304F 255
Car Mitsubishi MELCO MH8XXX 260
Bike SUZUKI MARINE MELCO 254

BOOTLOADER INFINEON TRICORE

TYPE BRAND ECU ECU_TYPE K-TAG
Car BMW BOSCH EDC17 C06 1156
Car OPEL GM BOSCH EDC17 C19 1153
Car BMW BOSCH EDC17 C41 DDE8 1220
Car MINI BOSCH EDC17 C41 DDE8 1220
Car Mercedes BOSCH EDC17 C43 1231
Car Mercedes BOSCH EDC17 CP01 1157
Car BMW BOSCH EDC17 CP02 1156

BOOTLOADER ST10

TYPE BRAND ECU ECU_TYPE K-TAG
Car PEUGEOT BOSCH EDC15C2 397
Car PEUGEOT BOSCH EDC15C6/C7 397
Car PEUGEOT BOSCH EDC16+ 397
Car PEUGEOT BOSCH EDC16+ C34 397
Car PEUGEOT BOSCH EDC16+ C34/C39 397
Car PEUGEOT BOSCH EDC16+ CP39 397
Car PEUGEOT BOSCH EDC16C0/C3 397
Car PEUGEOT BOSCH EDC16C34/5.90 397
Car Kia BOSCH M7.9.8 167

Just as the full range of Alientech programmers, K-TAG is available both in Master and Slave

version. This way, Slave user can rely on the larger network of Master in the chiptuning

field.The only thing that K-TAG does not do: OBD Communication. But for that you can count

on KESSv2.

To use K-Tag at best on any kind of Electronic Control Unit, Alientech offers you a wide

range of special adapters, to be soldered on the ECU or to be used on the positioning frame.

Following Details of the Accessories Available in Car List Catalog Per Group of Protocols of

Communication

BDM Motorola MPC5XX
14AS00T01S: Adapter to be soldered to the ECU
14AS00T02S: Cable with connector to be soldered to the ECU
14AS00T03S: Adapter to be soldered to the ECU
14AS00T04S: Adapter to be soldered to the ECU
14AM00T00M: Board for connection through positioning frame
14AM00T01M: Board for connection through positioning frame
14AM00T02M: Board for connection through positioning frame
14AM00TBAS + 14AM00TB01: Board for connection through positioning frame, with pull-out tip

14AM00TB01
14AM00TBAS + 14AM00TB02: Board for connection through positioning frame, with pull-out tip

14AM00TB02
14AM00TBAS + 14AM00TB03: Board for connection through positioning frame, with pull-out tip

14AM00TB03

J-TAG Nexus MPC5xx
14AS00T05S: Adapter to be soldered to the ECU
14AM00T05M: Board for connection through positioning frame
14AM00T06M: Board for connection through positioning frame

J-TAG RENESAS SH705xx
14AM00T07M: Write Board for connection through positioning frame
14AM00T08M: Write Board for connection through positioning frame
14AM00T09M: Write Board for connection through positioning frame
14AM00T10M: Read Board for connection through positioning frame
14AM00T11M: Read Board for connection through positioning frame

BOOTLOADER INFINEON TRICORE
14P600KT04: Board for connection through positioning frame

BOOTLOADER ST10
14AM00T03M: Board for connection through positioning frame
