VAG IMMO Emulator For VW/Audi

VAG IMMO Emulator For VW/Audi

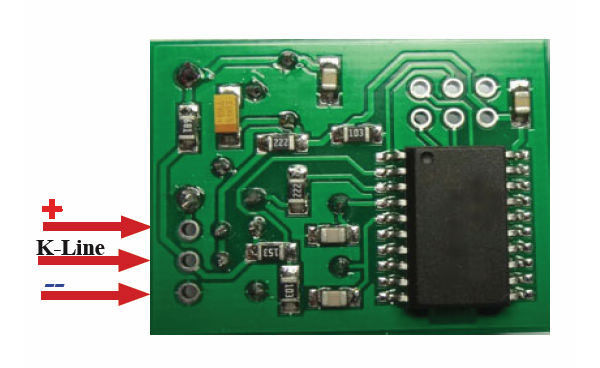

Connection Diagram:

For cars with separated immobilizer box, short W and K lines and remove immobilizer box.
For cars with dashboard immobilizer, cut W line from dashboard

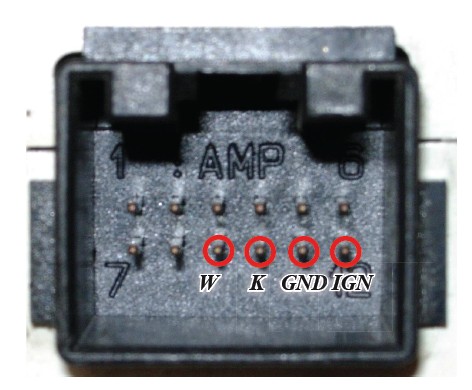

VW Golf III, Passat B4 Immobilizer Box Side

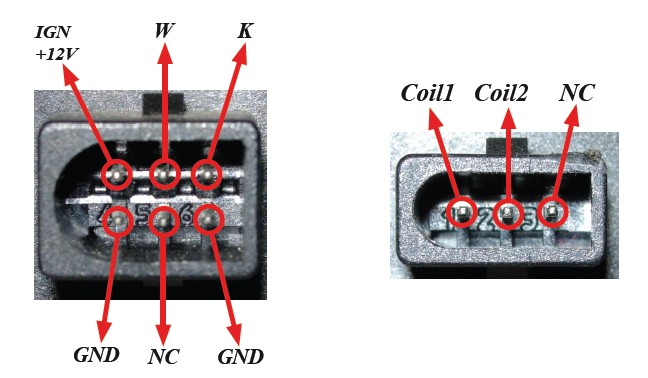

VW Sharan 98, Lupo 98, Polo 98, T4 Immobilizer Box Side

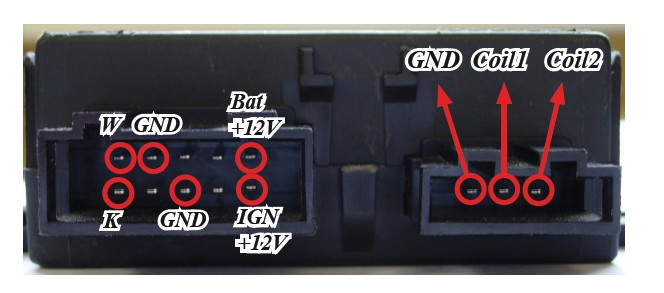

VW LT 35 Immobilizer Box Side

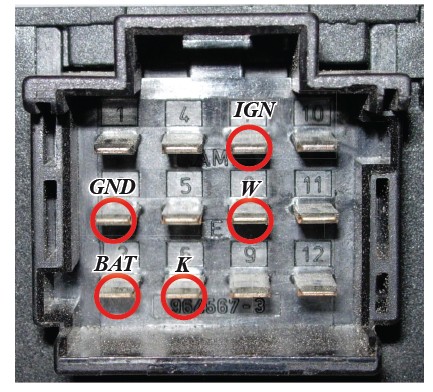

Audi 100, A6, A4, A8 Immobilizer Box Side

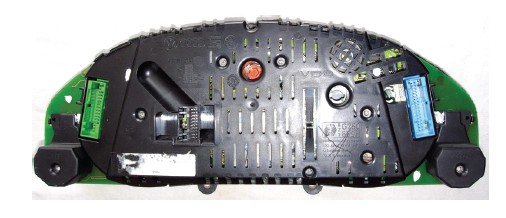

VW B5, Golf IV, New Beate, Audi A2, A3, A4, A6, TT

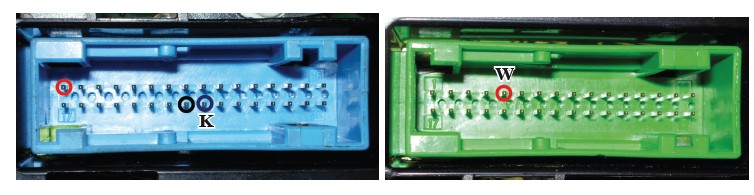

GND --- Dashboard Blue connector pin 24
K --- Dashboard Blue connector pin 25
W --- Dashboard Green connector pin 5
IGN +12V --- Dashboard Blue connector pin 1

Package List:

1pc x VAG IMMO Emulator
