VAS 5054A ODIS V3.0.1 Bluetooth Support UDS Protocol With OKI Chip ODIS Best Quality

Be the first to review this product

Availability: In stock

$99.00
SKU: TSS-0110
OR

Quick Overview

VAS 5054A ODIS V3.0.1 Bluetooth Support UDS Protocol With OKI Chip ODIS Best Quality


1) VAS 5054A with OKI chip, support UDS protocols.
2) support multi-language. Newest software version is V3.0.1
3) with bluetooth. and high quality

VAS 5054A ODIS V3.0.1 Bluetooth Support UDS Protocol With OKI Chip ODIS Best Quality

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

VAS 5054A ODIS V3.0.1 Bluetooth Support UDS Protocol With OKI Chip ODIS Best Quality

Why to choose VAS 5054A:

1. Multi-language:
English, Japanese, Portuguese, Romanian, Korean, Dutch, Polish, Turkish, Spanish, French, Italian,Croatian, Danish, German, Swedish, Finnish, Slovenian, Czech, Russian, Greek, Polish, Chinese
2. Workable Model: VW AUDI SKODA SEAT
3. Software Version: ODIS V3.0.1
4. Add new car models Bentley and Lamborghini
5. With OKI Chip
6. Support UDS Protocol
7. Bluetooth Code:082145725

Computer Windows System Requirements:

Windows System Language: American English
Windows 7 Professional system
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing VAS5054A

Bluetooth version with oki chip
The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 2 to 5 meters, depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
VAS 5054A hardware support online coding, but our software do not support online coding, need use VW dealer's software.

Specification:

The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system.
Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC.
The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.
Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile).
The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.
Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play,
and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

The following vehicle bus systems are supported:

K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)

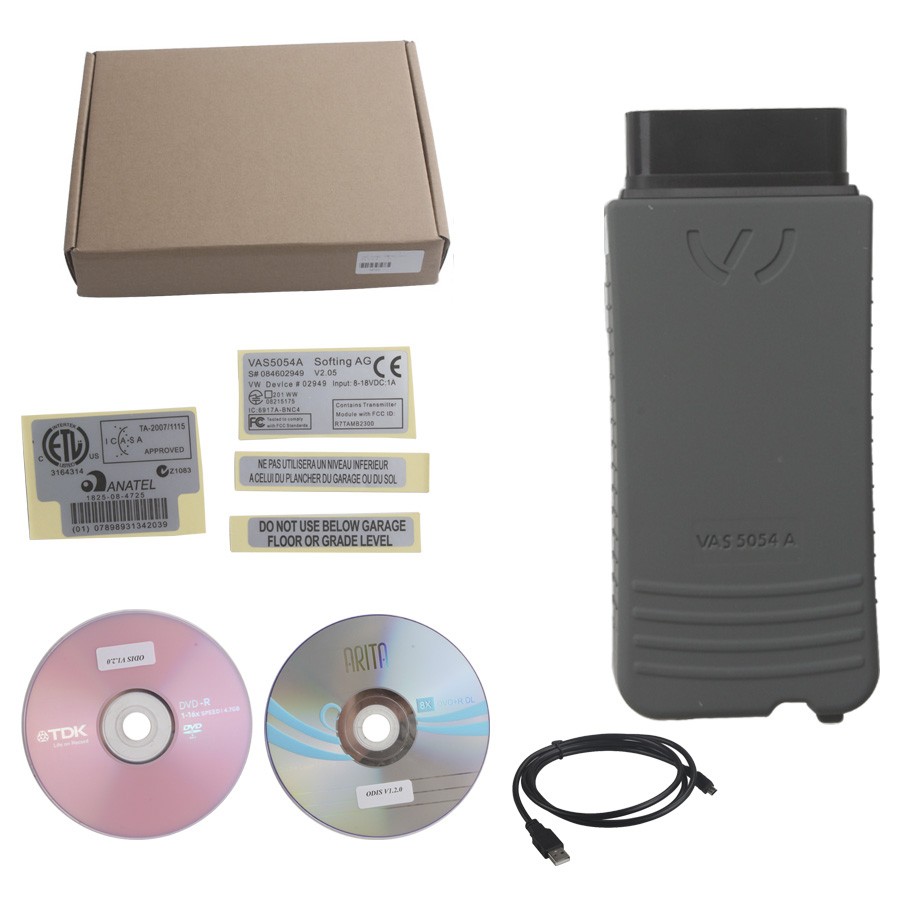

Package Including:

1pc x VAS 5054A Main unit
1pc x USB Cable
4pcs x CD Software
1pc x Carry Case

Weight: 600g
Package: 26cm*19cm*5cm ( Inch:10.24*7.48*1.97 )
