VAS 5054A VW Audi Bentley and Lamborghini Multi-language Diagnostic Tool

Be the first to review this product

Availability: In stock

$59.40
SKU: TSS-0123
OR

Quick Overview

VAS 5054A VW Audi Bentley and Lamborghini Multi-language Diagnostic Tool


VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers,mainly do AUDI VW Seat. It is bluetooth version.

VAS 5054A VW Audi Bentley and Lamborghini Multi-language Diagnostic Tool

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

VAS 5054A VW Audi Bentley and Lamborghini Multi-language Diagnostic Tool

Why To Choose VAS 5054A:

1. Newest version: V3.0.1
2. Multi-language: English/Japanese/Portuguese/Romanian/Korean/Dutch/Polish/Turkish/Spanish/French/Italian/Croatian/
Danish/German/Swedish/Finnish/Slovenian/Czech/Russian/Greek/Chinese
3. Support Computer System: Windows XP(xp2/xp3)
4. Add new car models Bentley and Lamborghini
5. Update by CD
6. Bluetooth version scanner.

VAS 5054AComputer Windows System Requirements:

Windows System Language: American English
Windows XP(xp2/xp3)
System C:// have to be NTFS format
C:// need to have at least 40GB space for installing VAS5054A

Bluetooth version

The VAS 5054A is a universal diagnostic interface for the vehicles of the Volkswagen Group and all OBD vehicle systems from other manufacturers.
The integrated Bluetooth interface connects the vehicle with a notebook, desktop PC or test system.
No cables are needed for vehicle diagnostics using the VAS 5054A.
The range of the wireless Bluetooth connection is 5 to 10 meters,depending on the environment and the type of Bluetooth adapter used on the PC side.
The Serial Port Profile (SPP) is used for data transfer via Bluetooth. Different Bluetooth security levels are supported.
1. VAS 5054A Software Version:V15/V16/V17/V18/V19

2. VAS 5054A Language:English/Germany/Russia/Spanish/Czech/France/Dutch/Portuguese

VAS 5054A Specification:

The vehicle protocols are handled directly in the VAS 5054A.
This ensures fast response times and a reliable real-time behavior independently of the PC operating system. Every time a connection is established, the VAS 5054A software is identified with the version installed on the application PC. The VAS 5054A thus automatically adopts any new features provided after a new software version has been installed on the application PC.
The diagnostic application and the associated Diagnostic Base System are installed on the application PC.
The diagnostic base system can access the VAS 5054A via Bluetooth or USB.

Access via Bluetooth: After a connection to the VAS 5054A has been set up, the Bluetooth software provides a virtual serial COM port (Bluetooth Serial Port Profile). The Diagnostic Base System uses this COM port to communicate with the VAS 5054A.You need to specify this port when you install the diagnostic application.

Access via USB: You can also connect the VAS 5054A to the application PC by using the supplied USB cable. Windows detects the VAS 5054A through Plug and Play, and automatically installs the drivers copied when you installed the diagnostic application. Setup of the VAS 5054A is then complete and the device is ready for use by the diagnostic application.

The following vehicle bus systems are supported:

K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE J1850)

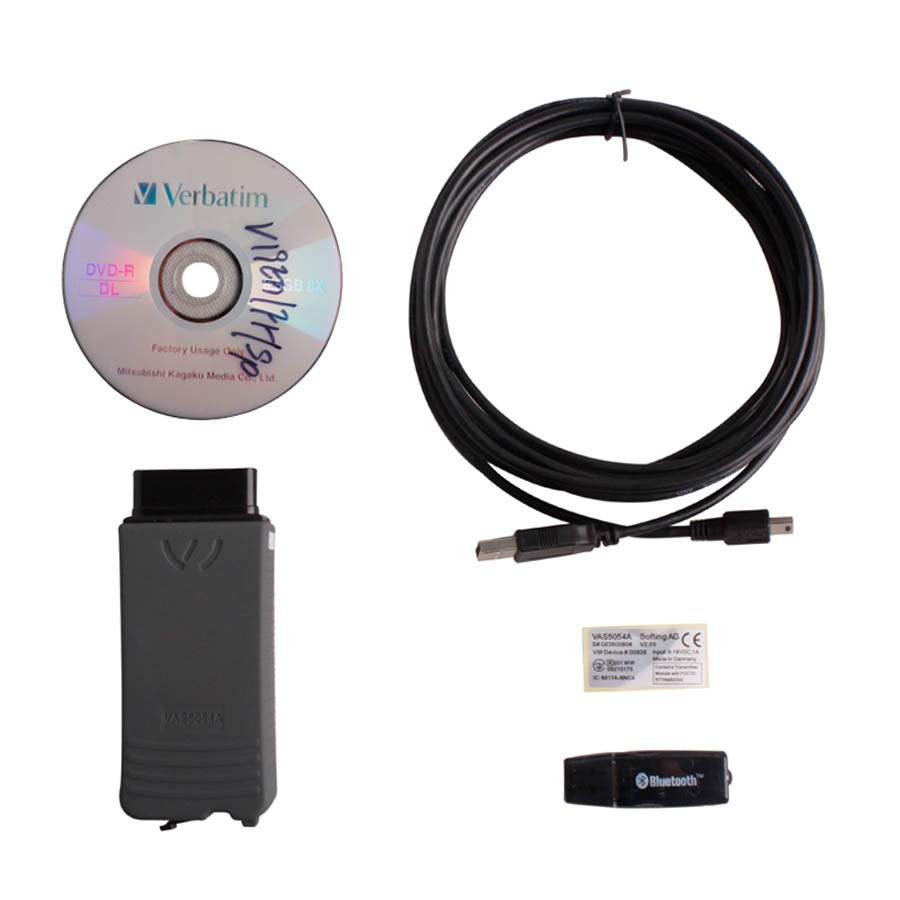

VAS 5054A package list:

1pc x VAS 5054A Main unit
1pc x USB Cable
2pcs x CD Software
1pc x Carry Case

Weight: 600g
Package: 25cm*19cm*6cm ( Inch:9.84*7.48*2.36 )
