2016 VBOX-VOLVO XC90 Diagnostic Tool for Volvo Perfectly Replacement For Volvo Vida Dice

Be the first to review this product

Availability: In stock

$99.00
SKU: TSS-0021
OR

Quick Overview

2016 VBOX-VOLVO XC90 Diagnostic Tool Latest Diagnostic Scanner for Volvo


2016 VBOX-VOLVO XC90 is using DOIP communication diagnostic mode, the old VOLVO VTDA DICE detection hardware has been unable to provide diagnostic services.

2016 VBOX-VOLVO XC90 Diagnostic Tool for Volvo Perfectly Replacement For Volvo Vida Dice

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

2016 VBOX-VOLVO XC90 Diagnostic Tool Latest Diagnostic Scanner for Volvo

Why To Choose VBOX-VOLVO XC90:

1. Software System Support: Window XP/7/8/10
2. Update: Free Update on the website ( If add additional special function on this device, update may charges)
3. Support Volvo Till Year 2015
4. Language: English

VBOX-VOLVO can offer customer remote on-line service, including VOLVO whole vehicle, parts manual, technical guide, whole vehicle circuit diagram, repair services. Meanwhile, customer is available to download VBOX-VOLVO APP,2016 VOLVO XC90 whole system faulty diagnostic, including read the faulty code, read the history code, read ECU information, read VIN information, clear faulty code. We will publish special diagnostic service of VOLVO XC90 afterwards basic on customer demand.

How to Use:

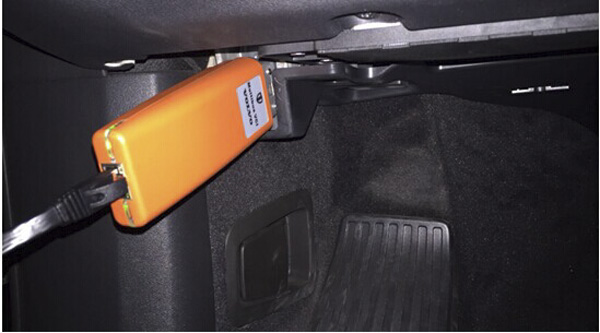

1. Connect to hardware, insert the box into OBD interface, connect the box with internet reticle and computer reticle interface, red light sparkling. You can find the OBD interface on the left side down of the seat.

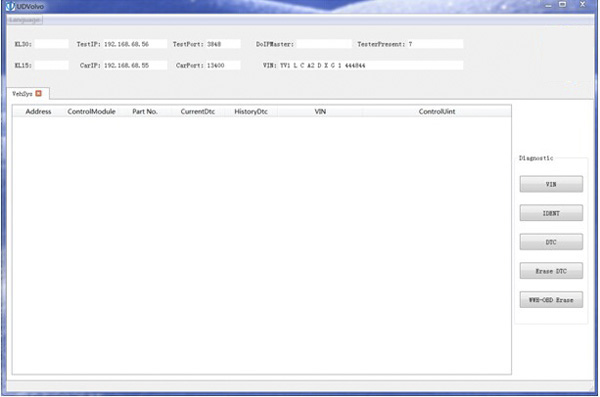

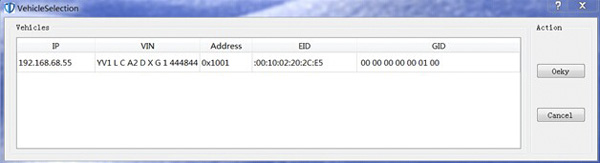

2. UDVOLVO is a free install application, decompression zip package to local computer folder, run the application…/Volvo/ASAMMCD3/UDVolvo.exe press enter after you find your vehicle IP.

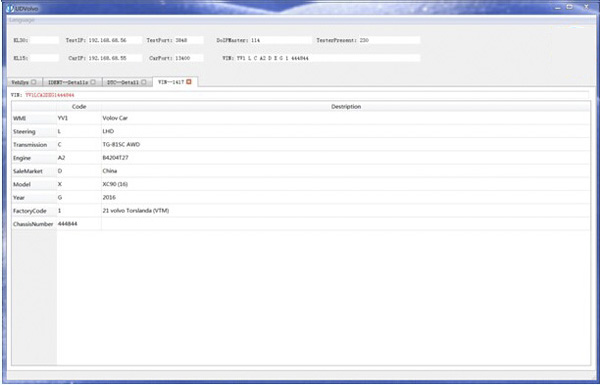

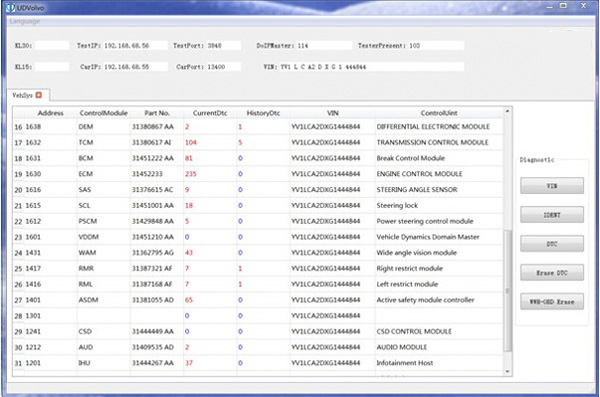

3. Press“Vehicle identification number, read ECU information, read fault number

4. Double press “current fault code number”, enter single ECU
Press“current fault code number or history fault code number”, press the right button on mouse go check for detail information.


5. Check the detail information.


6. Check the fault code number detail information.

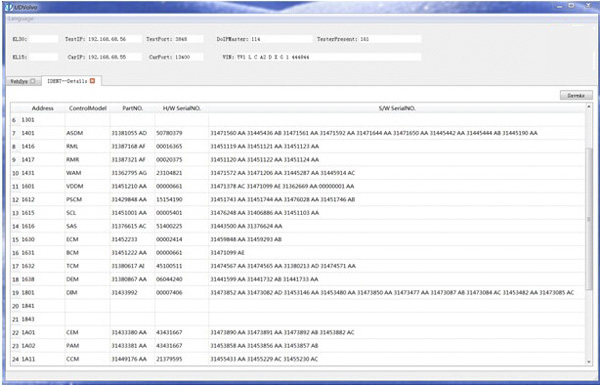

7. Check ECU detail information.


8. Enter ECU read fault code number history fault code number, clean up code number, read vehicle identification number and ECU detail information, press current “current fault code number and history fault code number” to clean up the fault code numbers.

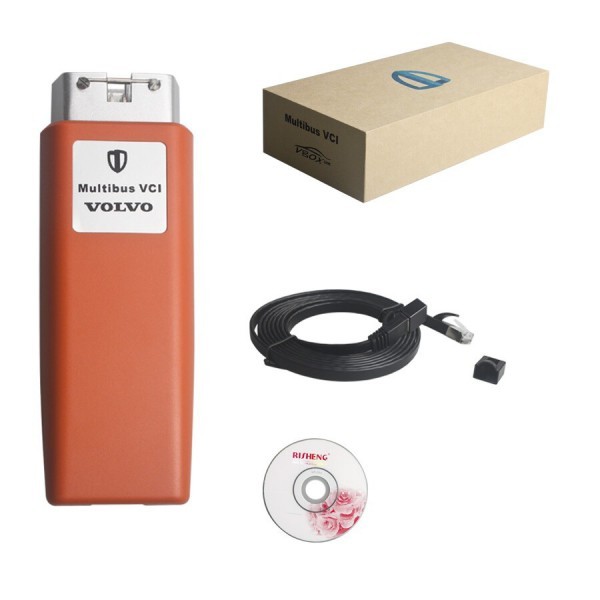

Package Including:

1pc x VOLVO - DoIP Host
1pc x VOLVO - DoIP Mainline
1pc x Instruction
1pc x CD

Weight:0.3KG        ( 0.66LB )

Package:20cm*10cm*5cm        ( Inch: 7.87*3.94*1.97 )
