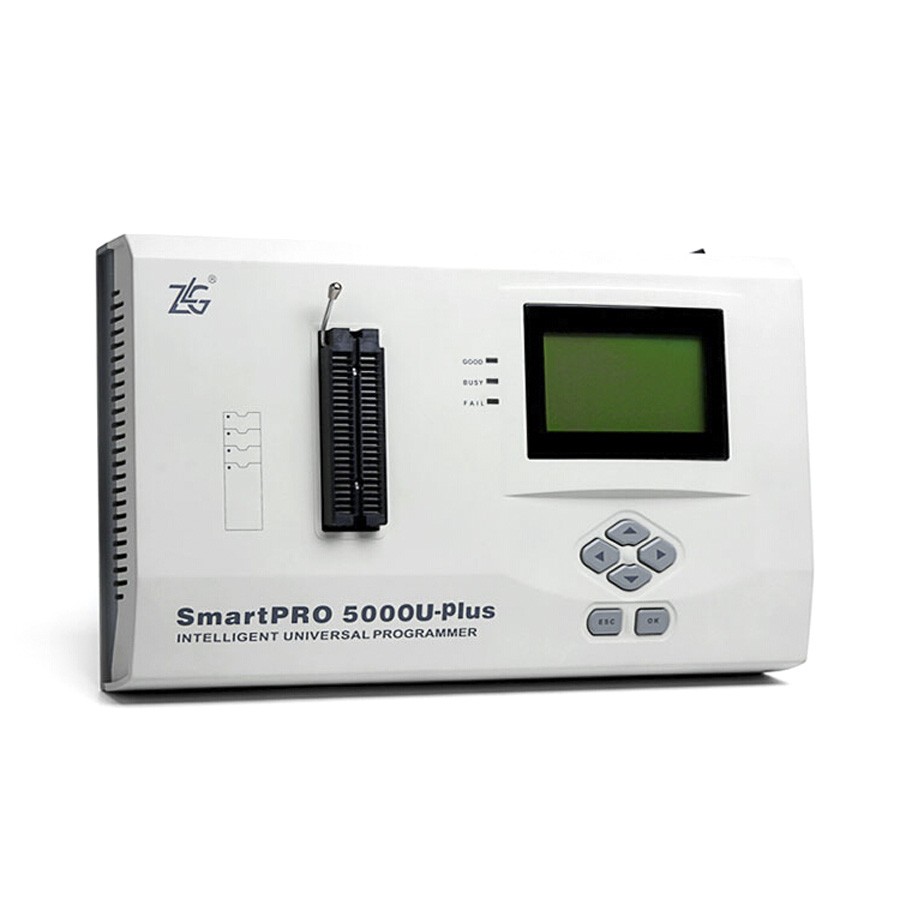

Wellon SmartPRO 5000U-PLUS Universal USB Programmer
Why to choose SmartPRO 5000U-PLUS Programmer:
1. Patented I / O port drive technology, eliminate IC programming burning
Due to universal programmers are requires compatible chips, the requirements for the programming I / O port has been raised to a high level.Brand-new I / O port drive technology enables each I / O port of the universal programmer to pass high-speed signals, suppress overshoot brought by the high-speed signal, protect over-current, provide adequate and sustained output current, bear bus collision and has the ability of quickly recovering from conflict status.
2. ICP online programming, makes it easier to use and more flexible
Separate ICP download line interface is able to program chips on the circuit board online. While the offline programming mode ICP, without connecting to a computer, users only need to get the data stored in the built-in DOM. With few ICP scattered lines, it is potable for the spot debugging or a program upgrade.
3. Massive IC support, provides timely timing upgrade
The SmartPRO 5000U-PLUS programmer is now compatible with various types of MCU / Flash / CPLD / FPGA chips, etc relies on good relationships with the major manufacturers. It also provides a variety of new chips programming ability accurately and timely which will satisfy our customers' needs to greatest extent.
SmartPRO 5000U-PLUS Specification:
SmartPRO 5000U-PLUS Specification:
|
Type |
SmartPRO 5000U-Plus |
|
Support device |
EPROM, Paged EPROM, parallel and serial EEPROM, FPGA Serial configuration PROM, NOR FLASH and NAND FLASH reservoir, BPROM, NVRAM,CPLD, MCU, Firmware HUB, ARM. standard logic devices(TTL\CMOS) etc, device operating voltage:1.8~9V |
|
Encapsulation |
DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, μBGA, CSP, SCSP etc |
|
Online communication interface |
USB 2.0(High Speed) |
|
Configuration Options |
Adapter, CF card |
|
Power Input |
AC 100V-240V/47-63Hz |
|
Power Output |
12V/2A |
|
Dimension-Main Unit |
280mm×170mm×57mm (L×W×H) |
|
Built-in DOM |
32Mb×1(default) |
|
CF card |
1(optional) |
|
Operating system |
Windows NT/2000/XP/Win7/VISTA |
SmartPRO 5000U-PLUS software is lifetime free update.
Package including:
1pc x New SmartPRO 5000U Programmer
1pc x USB Cable
1pc x CD Software
1pc x Power Adapter
