Wellon VP598 Universal Programmer (Upgrade Version of VP390)

Wellon VP598 Universal Programmer (Upgrade Version of VP390)

Wellon VP598 Features:

Dimension:168×98×23mm,weight:265g.
Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz, DC output 9V/0.6A
48 Pin ZIF socket with Popular pin-drivers.

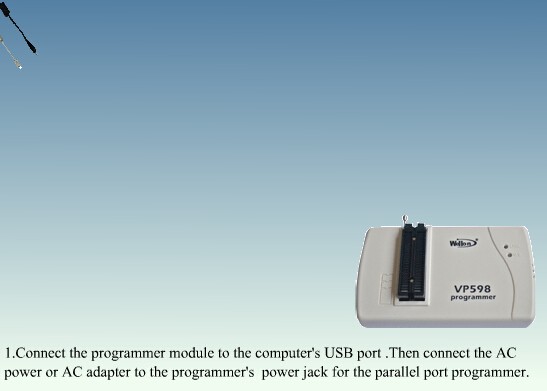

Interface with LAPTOP, PC or compatibles through USB port
Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Features Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
Optimum programming for each individual device
Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5v Low voltage devices
Not need exterior adapter for mostly devices.
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
Auto-run mode starts programming automatically upon detection of chip insertion
Supports WindowsXP/Vista/ Windows 7 (32bit and 64bit)/ Windows 8 (32bit and 64bit)
Supports ten languages,such as Chinese(Simplified),Chinese(Traditional),English,Korean,Poland,Italian,Portuguese，Dutch, Turkish and Hungary.

Device Support:

PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

IC Test:

TTL (74 series), CMOS (40/45 series) Logic IC
DRAM SRAM memory device

Device Updates:

WEILEI updates software and device algorithm regularly. You can get the latest software free of charge through internet

Ordering Information:

Programmer,cable, manual, software included
15 day moneyback guaranty, one year warranty

Warranty & Technical Support:

Programmer is warranted to be free of manufacturing or workmanship defects for one year from the date of purchase.

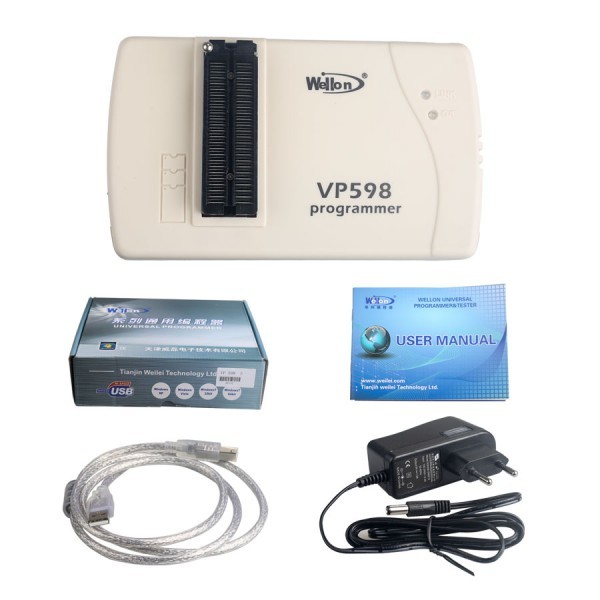

Package Including:

1pc x Wellon Programmer VP-598
1pc x USB cable
1pc x VP-598 Manual
1pc x power adapter
