Xeltek SP6100 SUPERPRO6100 SUPERPRO 6100 Programmer Updated Version of SP5000E,SP5000

Be the first to review this product

Availability: In stock

$819.00
SKU: TSS-E101
OR

Quick Overview

Xeltek SP6100 SUPERPRO6100 SUPERPRO 6100 Programmer Updated Version of SP5000E,SP5000


Until now,Support 324 IC manufacturer, 90826 pcs devices and keeps growing.

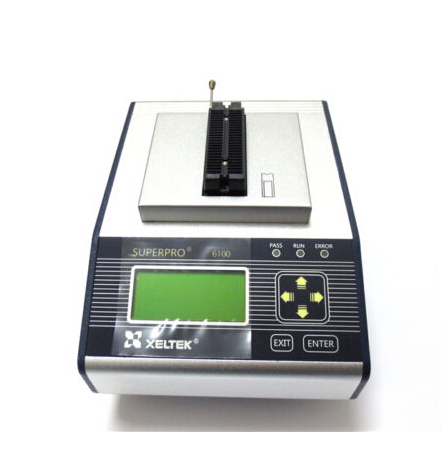

Xeltek SP6100 SUPERPRO6100 SUPERPRO 6100 Programmer Updated Version of SP5000E,SP5000

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Xeltek SP6100 SUPERPRO6100 SUPERPRO 6100 Programmer Updated Version of SP5000E,SP5000

Features:

1.Supports 87454 types of devices from 305 IC manufacturers (by 3/15/2013) and keeps growing.

2.Supports EPROM,Paged EPROM,Parallel and Serial EEPROM,FPGA,PROM,FLASH(NOR & NAND),BPROM,NVRAM,SPLD,CPLD,EPLD,Firmware HUB,Microcontroller,MCU,Supports devices with Vcc as low as 1.2V. Socket Adaptors available for DIP,SDIP,PLCC,JLCC,PGA,LGA,SOIC,SOJ,SOT,QFP,TQFP,PQFP,VQFP,MQF, LQFP,TSOP,OP,TSOPII, PSOP, SSOP, TSSOP, SON, EBGA , FBGA, FTBGA, VFBGA, μBGA, CSP, SCSP, QFN, HVQFN etc.

3.High programming speed.

4.Built with 144 universal pin-drivers. Universal adaptors are available for varies packages up to 144 pins. Quick new device support.

5.Popular NAND FLASH Platform supported including Samsung (XSR1.0/1.6), QualComm, HYNIX(HIFFS), MTK(Solution V1.1), ICERA (v1.0/2.0), ST (7162,7141) , AMLOGIC(IF2/0), REALTEK, PICOCHIP, DataLight ( Flash FX Pro), Marvell(310/303/920/935…), BroadCom, ZTE, Intel (CE4100), UBI, LEADCORE(L1809OG), MSATR etc. Customer-specific NAND solution available.

6.PC hosted mode and stand-alone dual modes. Under PC hosted mode the programmer is controlled by a PC via USB2.0 (high speed) to program a chip. Under stand-alone mode the programmer is controlled via a 6-KEY keypad and a 20 character by 4 line LCD display. A CF card is used to store the project files.
User can operate multiple units to construct a concurrent multiprogramming system thank for the stand-alone mode.

7.ISP/ICP programming capability available via ISP/ICP adaptor.

8.IC manufacturer approved programming algorithms are used for high reliability.

9.Testing functions for logic devices.

10.Advanced and powerful software functions.
Production mode starts chip operation at the moment the chip is inserted in the socket properly.
Project function simplifies processes such as device selection, file loading, device configuration setting, program option, and batch file setting into one touch step.
Password can be set for project files and production volume control
Batch command combines device operations like program, verify, security into a single command at any sequence.
Dynamic buffer makes it possible that each chip is programmed with different data file. Applications including serial number, MAC address etc.
Log file is useful for quality tracking.

11.Many safety mechanisms are built including self-diagnosis, wrong chip placement detection, poor-pin-contacting detection, ID checking, over-current and over-voltage protection etc.

12.Windows XP/Vista/Win7/ Win8 compatibility.

Volumn Production Solution:

By operating multiple programmers simultaneously you can use them in high volume production environment.
Clustering of programmers provides for flexible and easy way for volume production.
Optional Compact Flash card is necessary to store user data, and device algorithm in stand-alone operation. For most operation. 256MB size is recommended.

Device Updates:

XELTEK updates software and device algorithm regularly.
View the latestDevice List .
Download the current software version free of charge .
Updates are available by mail at a nominal charge.
XELTEK also adds devices upon customer's request at its option.

Hardware & Electrical Specifications:

Supported devices: EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration PROM, FLASH memory (NOR & NAND)n, BPROM, NVRAM, SPLD, CPLD, EPLD, Firmware HUB, Microcontroller, MCU. .
Packages supported: DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, uBGA, CSP, SCSP, ...
PC interface: USB2.0
Stand-alone Feature: Supported, Compact FLASH Card .
Electrical spec. of the AC adapter: AC input 90V to 250V, 50/60Hz, DC output 12V/2A; power:15W
Mechanical parameter: Main unit: Size: 216*148*94 mm Weight: 1.6Kg.
Packing Box: Size 301*252*145 mm Weight: 2.8 Kg.

Accessories:

Main unit with a DIP48 adaptor, AC adaptor, USB2.0 cable, user manual, software CD, register card
Optional accessories: adaptor in varies packages, CF card for stand-alone operation.
