YD409 TPMS Sensor Trigger Tool for Activate and Decode TPMS Sensor

YD409 TPMS Sensor Trigger Tool for Activate and Decode TPMS Sensor

YD409 TPMS Sensor Trigger Tool Features:

1) Triggers all currently known TPMS sensors, activates ALL magnetic, frequency and tire deflation triggered sensors on all vehicles sold worldwide. Including 2014 Models on selected vehicles

* Make-Model-Year selection ensures correct activation and avoids crosstalk.
* Receives both 315MHz and 433MHz signals.
* Reads sensor ID, tire pressure , temperature, battery condition, OE part number, relearn information. Prints health report through computer.
* Provides visual and audible responses to confirm sensors are working properly. Warns of a wrong sensor installed, missing or faulty sensor, duplicate ID, and incorrect sensor mode.

2) Checks RF Remote Keyless Entry (key FOB)

* Provide navigation and step-by-step instruction on the screen, Even the newest recruited technician can use the YD409.
* Built-in rechargeable Li-polymer battery. Automatic power-off. Two options to charge the tool, wall plug or by connecting to the compute.
* Proper LF signal to prevent being fooled by other RF signals.
* Saves up to 10 TPMS records for future data review.

3) Support multi- language--- English, French, Spanish and more

4) 1 year free online update

YD409 TPMS Sensor Trigger Tool Specification:

Display: Backlit, 128*64 pixel display with contrast adjustment

Operating Temperature: 0 to 60°C (32 to 140°F)

Storage Temperature: -20 to 70°C (-4 to 158°F)

Power: 3.7V Li-polymer battery

Radio reception: 315 MHz and 433.92 MHz

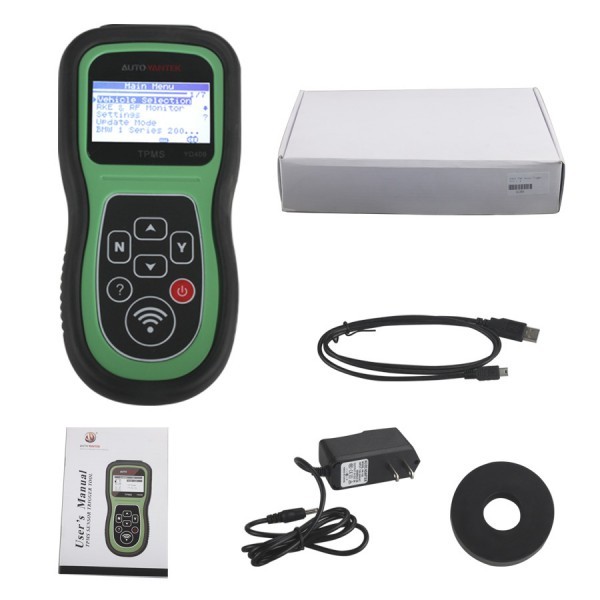

Packing list:

1pc x YD409 TPMS Trigger Tool
1pc x User’s guide
1pc x USB cable
1pc x Software CD
1pc x Magnet
1pc x Battery Charger
1pc x Blow molding case
