9S12 908 711 705 4 ln 1 Motorola Programmer

9S12 908 711 705 4 ln 1 Motorola Programmer

Why To Choose 9S12 908 711 705 4 in 1 Motorola Programador:

1.Language :English
2.Opreation System : Easy to use Windows 98/NT/2000/XP software

Notice :

On the D53J mask set (MC68HC05X32), DIV10 is forced in bootstrap mode.
So 20 MHz Crystal must be used with this device

1.Motorola 9S12 Programmer Features

In circuit / on board EEPROM/FLASH programming
Communication with PC via a serial port
Win 32 control software including editor
High Speed Programming
80QFP, 112QFP and 144QFP programming adapters

Motorola 9S12 Programmer Supported Devices

68HC912DC128A (3K91D)
MC68HC912DC128 (0K50E)
MC68HC912DG128 (5H55W)
MC68HC912DG128A (3K91D)
MC68HC912DG128A (0K50E)
MC68HC912D60A(2K38K)
MC68HC912B32 (4J54E)
MC68HC912B32 (9H91F)
MC68HC912D60 (0K75F)
MC68HC912D60 (0K13J)
MC68HC912D60 (4F73K)
MC9S12D64 (2L86D)
MC9S12DG128B (OL85D)
MC9S12DT128B (OL85D)
MC9S12A128B (OL85D)
MC9S12DB128B (OL85D)
MC9S12DT128B (1L85D)
MC9S12H128 (1K78X)
MC9S12 DT128B (3L40K)
MC9S12DG256C (2K79X)
MC9S12DT256C (2K79X)
MC9S12DP256C (2K79X)
MC9S12H256 (1K78X)
MC9S12DP512 (1L00M)

For Motorola 9S12 Programmer Package Included

one 9S12 programmer
one HC912 QFP80 adapter
one MC9S12 112QFP adapter
one MC9S12 80QFP adaper
one HC912 QFP112 adapter
one MC9S12H256 144QFP adapter
Additional items youll need to use this Motorola 9S12 Programmer
Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
Power supply: An 12 Volt / 500 mA power adapter.

2.Motorola 908 Programmer/ETL

1)In-Circuit EEPROM programming (MON08 Rev1 adaptor must be used).
2)Ultra high-speed On-Board FLASH/EEPROM programming.
302x2 color LEDs indicates mode of operation, power supply status

Supported Devices

MC68HC908AZ60 (2J74Y)
MC68HC908AZ60 (4J74Y)
MC68HC908AZ60A (3K85K)
MC68HC908AS60 (3J74Y)
MC68HC908AS60A (1L87J)
MC68HC908AB32 (3K56G)
MC68HC08AZ60 (1J35D)
MC68HC08AZ32 (0J66D)
MC68HC08AZ32 (1H56A)
MC68HC08AS20 (0H94K)
MC68HC08AZ32A (1L52H)
MC68HC08AB16A (0L72A)
MC68HC05H12 (0H57A)

Additional items you'll need to use this tool

1.Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
2.Power supply: An 12 Volt / 500 mA power adapter.

3. For Motorola 711 Programmer Features

Communication with PC via a serial port
Easy to use Windows 98/ME/XP software
In-circuit/On-board EEPROM programming
High Speed EEPROM Programming
CONFIG Register Programming
Pin tester in both operation Modes
TargetMCU baud rate auto detection
2 color LED indicatesMode of operation, power supply status
8 adapers included

For Motorola 711 Programmer Supported Devices

MC68HC11A8 (AB95T)
MC68HC11A8 (C96N)
MC68HC11A8 (D26E)
MC68HC11E20(3E22B)
MC68HC11E9 (1B60R)
MC68HC11E9 (D82R)
MC68HC11E9 (E22B)
MC68HC11E9 (E28B)
MC68HC11EA9 (2D47J)
MC68HC11F1 (2F37E)
MC68HC11F1 (E87J)
MC68HC11K1 (2D58N)
MC68HC11K4 (1E62H)
MC68HC11K4 (OE75J)
MC68HC11KA4 (1E59B)
MC68HC11KS2 (0H95B)
MC68HC11KS4 (0E57S)
MC68HC11KS4 (0F60M)
MC68HC11P2 (2E74J)
MC68HC711E20 (1H19S)
MC68HC711E9 (4K81H)
MC68HC711E9 (5C47M)
MC68HC711EA9(0D46J)
MC68HC711K4 (K59D)
MC68HC711PH8(0H30R)
MC68S711E9 (5C47M)
XC68HC711KS8 (1H96P)
XC68HC711P2 (1E53M)

For Motorola 711 Programmer Package Included

one 711 programmer
one 11EA9 PLCC-52 adapter
one 11E PLCC-52 adapter
one 11E QFP-64 adapter
one 11K PLCC-84 adapter
one 11K QFP-80 adapter
one 11KA/KS PLCC-68 adapter
one 11F PLCC-68 adapter
one 11PH PLCC-84 adapter

Additional items youll need to use Motorola 711 Programmer

Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
Power supply: An 12 Volt / 500MA power adapter.

4.for Motorola 705 Programmer Features

Easy to use DOS, Windows 95/98/NT/2000/XP software
Onboard processor
Device selection by 4 jumpers

2 color LEDs indicates mode of operation, security condition (check option available without PC)
LPT port self-check function on a board
52PLCC PGA socket on a board and additional adaptor for 64QFP device in complete

For Motorola 705 Programmer Supported Devices

MC68HC705B16
MC68HC705B32
MC68HC705X16
MC68HC705X32
MC68HC05B68
MC68HC05B616
MC68HC05B632
MC68HC05X16
MC68HC05X32

For Motorola 705 Programmer Package Included

one 705 programmer
one MC68HC705B16 QFP-64
Additional items youll need to use this tool
Host: A 32 Bit x86 based or Pentium PC with a free LPT communication port.
Power supply: An 12 Volt / 500MA power adapter.
Note: You may purchase a 12V power adapter in this site if you like.

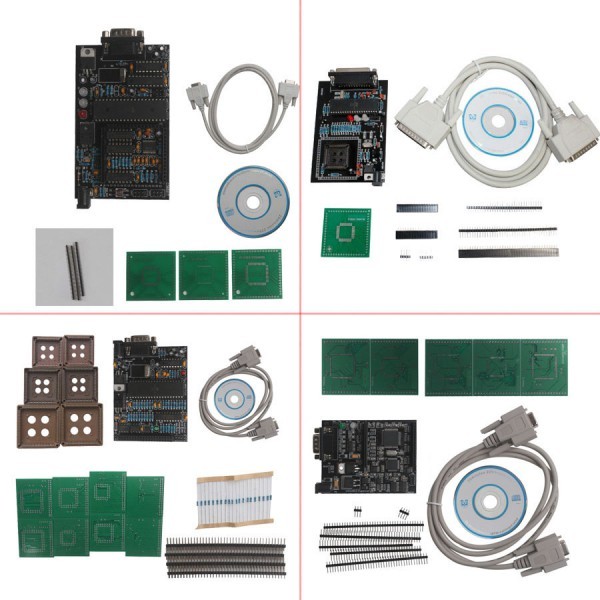

package Including:

For Mortorola 9s12 programmer + adapters + software x 1
For Mortorola 908 programmer + adapters + software x 1
For Mortorola 711 programmer + adapters + software x 1
For Mortorola 705 programmer + adapters + software x 1
