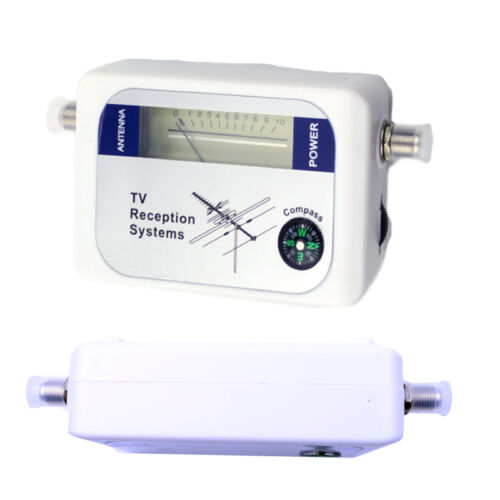

DVB-T Finder Digital Aerial Terrestrial TV Antenna Signal Strength Meter US
US Stock and fast delivery from US warehouse directly!!!
Features:
Compass With attenuation control function easily locate satellite signal.
Corrosion-resistant connectors.
In-line IF singal strength meter. Excellent sensitivity.
Great for remote satellite antennas.
Elegant exterior and convenient to carry.
Specifications:
Power supply: 9-12V DC or Battery pack 6x AA batteries(not included)
Input level range: 65 ~ 95 dBuv
Frequency range: 170 - 860MHz
Color: White
Operation:
1.Connect the antenna cable to the left F Female and the battery pack cable to the right F Female. Remove any external amplifier* that may be connected to the antenna.
2.Adjust the antenna to the best position by watching the meter's reading. Higher up the scale gives a better signal. If the finder's reading becomes full scale, adjust the level control knob to reduce the reading to around 5 (Turning the knob clockwise will decrease the reading), continue to move the antenna until you have the highest possible meter reading.
3.Remove the finder and replace any amplifier that was disconnected.
Important Note:
-If your antenna has an internal amplifer, (eg: 01MM-SQ01), it should be powered by an external power supply via a DC power inserter. Make sure the power inserter is positioned between the finder and the antenna.
Package included:
1 x Signal Strength Meter
1 x data line
1 x 3-seat battery holder
Additional Information
Condition | Brand New |
---|---|
Brand | FLYPIG |
Compatible Model | 170 - 860MHz |
Manufacturer Part Number | BTC-OT007 |
Type | Aerial TV Antenna Signal Finder |
Color | white |
Size | 12.5cm x 6.4cm x 3.5cm/4.92" x 2.52" x 1.38" |
Weight (Kg) | 0.0330 |
Material | Eco-friendly ABS |
Battery Info | No |
Number in Pack | 1pcs |
