Lexia-3 Lexia3 V48 PP2000 V25 XS Evolution Diagnostic Tool For Peugeot And Citroen With Diagbox V7.76 Software

Lexia-3 Lexia3 V48 PP2000 V25 XS Evolution Diagnostic Tool For Peugeot And Citroen With Diagbox V7.76 Software

Why To Choose Lexia-3 PP2000 XS Evolution Diagnostic Tool:

1. PP2000/LEXIA-3 Interface works for both Citroen and Peugeot!
2. Diagbox software is latest version: V7.76
3. Support Multi-Language: English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary, Greek, Czech
4. Software support update by CD.

Lexia-3 PP2000 Hardware and Software Requirements:

Software requires at least Intel Celeron/Pentium III 400 MHz, 128 MB RAM, 50MB free HDD space and USB 1.1 port (USB 2.0 recommended) and Microsoft Windows 98 SR2/2000/XP with the latest service pack installed. If customer requires, we can prepare ready to work PC.

Lexia-3 PP2000 Diagnostic Tool Description:

1. It is compatible with Citroen cars including: C1,C2,C3,C4,C6,C8,C-CROSSER,NEMO,BERLINGO,JUMPY,JUMPER,AX,SAXO,BX and so on.
2. It is compatible with most Peugeot cars from 1995.
3. Diagnostics is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

Lexia-3 PP2000 Diagnostic Tool Function:

Unlike other universal car scanner tools which only read fault codes; this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

1.Read identification
Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2. Read fault codes
Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure"). Program supports report printing or copy to clipboard.

3. Clear fault codes this function clears all stored fault codes and other diagnostic information.

4. Auto-scan (complete car scan/test)
Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values
Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.

6. Actuator test
Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

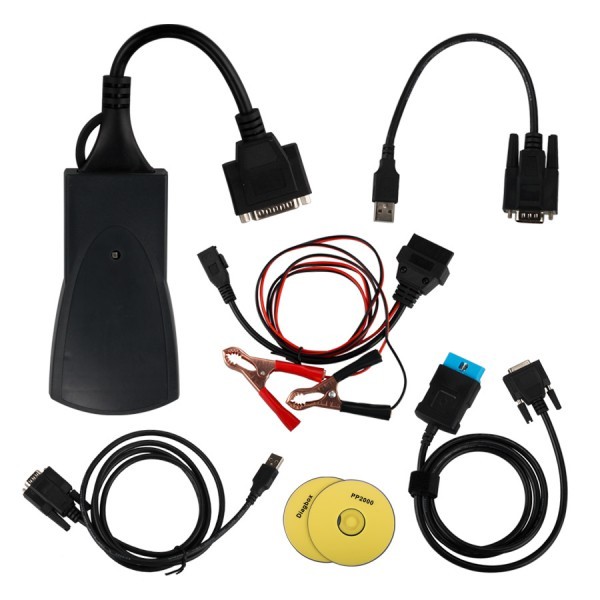

LEXIA-3/PP2000 Package List:

1pc x Main unit with extension OBD2 cable
1pc x Long 9pin to USB cable
1pc x Short 9pin to USB cable
1pc x OBD2 cable
1pc x 16pin to Clip Cable
1pc x Instruction for Installation and Activation DVD for PP2000

Weight:0.8KG( 1.76LB )

Package:30cm*14.5cm*5.5cm( Inch: 11.81*5.71*2.17 )
