V3.09 TM100 Transponder Key Programmer with Basic Module

V3.09 TM100 Transponder Key Programmer with Basic Module

Why to choose TM100:

1. Cheap Price:
Only 489usd for full universal key programming function and 5 additional module.

2. Full Transponder Support:
TM100 programmer not only support Philips transponders, Temic transponders, Megamos transponders, Texas transponders, it can also generate images for many different original transponders like Philips ID33, Philips Crypto for different ID's and Texas crypto!

3. Support All Key Lost:
TM100 Programmer support Toyota/Lexus all system keys, support BMW CAS1,CAS2,CAS3,CAS3+, support Ducati motocycle, support Audi EZS Megamos 8E, and many more functions.

4. Special Function for reading the Kilometers, VIN and transponder type for all BMW keys was added to the BMW software module! Immo pin code is also displayed for some car models.

TM100 Released:
1. Add keymaker: China vehicle, Delphi Immobox, 93C66, ID48. Models: GreatWall Hover,Wingle,Voolex C10,C20,C30,V200,V240,X240, ZhongHua.
2. Bugs fix.

Notes: EEPROM is 93C66B, SOT-23. You can read it by XProg using Microchip 93xx66B. The wire schematic from 6-PIN to 8-PIN can be got from technical support.

TM100 General Functions:

1. The List of Supported for the Present Transponders.

Philips Transponders:

PCF7930-31 reading
PCF7935 reading, shadow memory
PCF7936 writing, reading, password mode, crypto mode, Manchester or Biphase encodings
PCF7941 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7942 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7943 transponder, remote, Manchester or Biphase encodings
PCF7944 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7945 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7946 transponder, remote, Manchester or Biphase encodings
PCF7947 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7952 transponder, remote, EEPROM, Manchester or Biphase encodings
PCF7953 IDE, EEPROM reading
PCF7961 transponder, remote, Manchester or Biphase encodings

Temic transponders:

Temic 11 reading, writing to T5
Temic 12 reading, writing to T5
Temic 8C reading

Megamos Transponders:

Megamos 13 reading, writing to T5, emulating on PCF7930-35
Megamos 48 reading, writing, PIN, unlock by PIN, full range of memory contents
Megamos CRYPTO-2 8E read ID, read/write EEPROM, write Cryptokey

Texas Transponders:

Tiris 4C reading
Tiris 4D DST crypto reading, writing
Tiris 4E DST crypto reading, writing
Tiris DST+ reading

2. The List of Supported Type for Image Generator.

ID33 for Opel
ID33 for Mazda
ID33 for Nissan
ID33 for VW
ID40 for Opel
ID40 for Nissan
ID41 for Nissan
ID44 for VAG
ID45 for Peugeot
ID46 for Chery
ID46 for Chevrolet circle+
ID46 for Chrysler Y170
ID46 for Chrysler Y164
ID46 for Geely Emgrand
ID46 for Mitsubishi
ID46 for Peugeot 206, 307
ID46 for Porsche Cayenne
ID46 for Renault Clio II
ID46 for Renault Clio III
ID46 for Renault Espace4 phase 1
ID46 for Renault Espace4 phase 2
ID46 for Renault Laguna2 phase 1
ID46 for Renault Laguna2 phase 2
ID46 for Renault Master phase 2
ID46 for Renault Megane2
ID46 for Renault Scenic2
ID46 for Renault Trafic phase 2
ID46 for Renault Vel Satis phase 1
ID46 for Renault Vel Satis phase 2
ID46 for VW Phaeton, Touareg
ID48 for China VW Jetta 2011
ID60
ID61
ID62
ID63
ID64
ID65
ID66
ID67 for Toyota
ID68 for Toyota
ID70 for Toyota, Peugeot
ID73 for Mercedes C, E class 1996-1999
ID73 for Mercedes G class 1996-1999
ID73 for Mercedes ML
TP22 for Seat
TP23 for VW
TP24 for Skoda
TP25 for Audi

TM100 Special Functions:

It has following key maker modules at the first version(V1.0):

Module 1: VW Passat B6/CC Megamos 48

Read EEPROM 95320 in comfort module, write transponder with Megamos 48(TP23), write the new generated file back to 95320.

Advanced function: View Login code, VIN, Component Protection Bytes(7-byte).

Module 2: BMW CAS1,CAS2,CAS3,CAS3+ valet key

Read Motorola MCU in CAS module, write transponder with ID46(PCF7936),

PCF7942,PCF7943,PCF7944,PCF7945, write the new generated file back to CAS. New key can start engine, but without remote function.

Advanced function: View VIN, DME code, odometer, transponder type, remote frequency.

Highlight: Locked PCF7943, PCF794 can also be reused.

Module 3: Audi EZS Megamos 8E key

Read MC9S12, write transponder with ID8E(Megamos 8E), write the new generated file back to MC9S12.
Advanced function: Unlock Megamos 8E by dump.

Module 4: Honda Key

Module 5: BMW motorcycle HITAG key

Read M58BW016, write transponder with ID46(PCF7936), write the new generated file back to M58BW016.

Package Including:

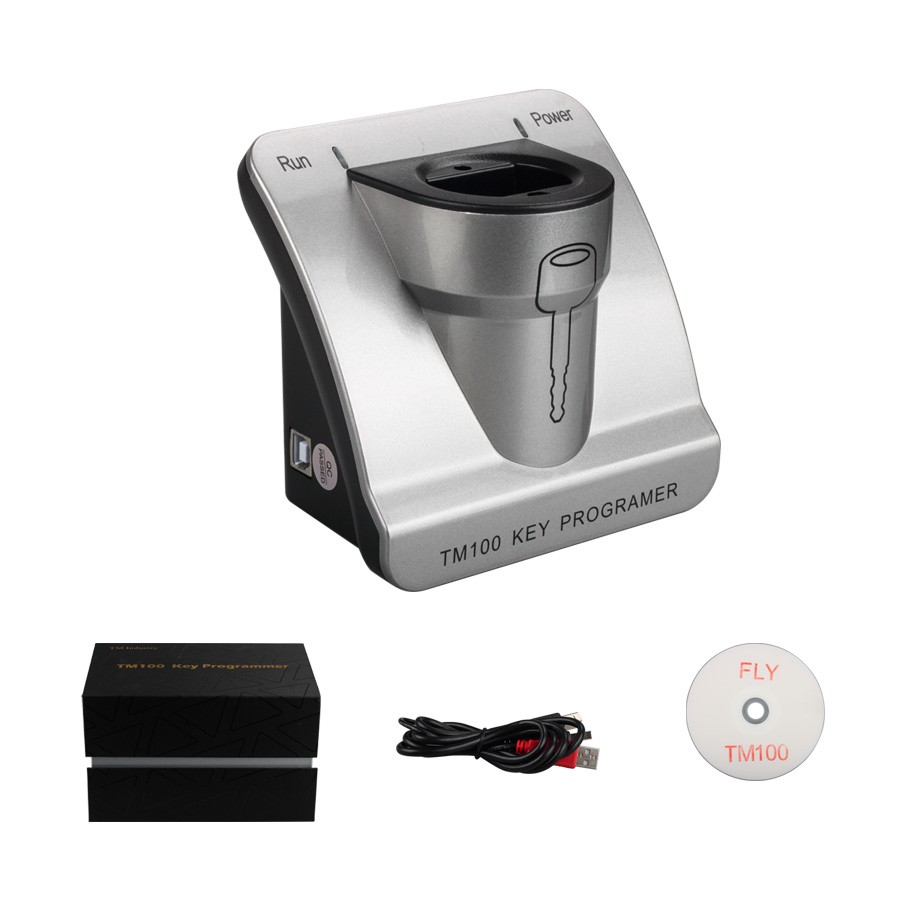

1pc x TM100 Transponder Key Programmer with Basic Module
