Vgate Scan Tool Maxiscan VS890

Vgate Scan Tool Maxiscan VS890

Supported Languages: English, Spanish, Portuguese, Korean, Japanese, Italian,Hebrew, German, French, Finnish, Dutch, Danish and Chinese.

Notice :Can't Update

Description:

Multi-language user interface, supports up to 13 languages
Application layer fully complies with ISO 15031 and is compliant with SAE J1979.
Fully functional Mode$01~Mode$09 operation.
Supports a large number of vehicles made by 70 manufacturers.
DTC includes generic (P0, P2, P3, B0, U0 and C0) & manufacturer specific (P1, P3, B1,B2 ,U1 and C1,C2,) codes.
Detailed DTC library: DTCs are explained in easy to understand words rather than obscure jargons. Online help information is available for 80% of all the DTCs,which shows the probable cause of the code

Supported Protocol:

SAE J1850 PWM
SAE J1850 VPW
ISO9141
KWP FAST INIT
KWP 5BAUD INIT
CAN 11BIT 500K
CAN 29BIT 500K
CAN 11BIT 250K
CAN 29BIT 250K
CAN_USER1 11B 125K
CAN_USER1 29B 125K
CAN_USER2 11B 50K
CAN_USER2 29B 50K
Full CAN BUS support for new cars
11 Bit and 29Bit CAN
Capable of communicating with multi-ECU System

Feature:

1. Color: Scarlet ,dark blue, Pearl Blue,Green Blue,Metal Black,Orange
2. LCD:3 inch black mask LCD, wide visible area, high contrast .The contents is readable even in strong sun shine.
3. ABS+PC Engineer Plastic Housing (passed 6-meter free fall test.) Patent No.200830010963.5.
4. Harmless fade-resistant paint.
5. Rubber oil sprayed housing; slide, dirty, and vibration proof.
6. Passed EMI/EMC test.
7. High quality PET 6-key film keypad.(3M harmless glue)
8. CE,FCC,RoHs Certified
9. Support manually input DTC Look-up
10. Read DTCs
11. Clear DTCs
12. Data stream
13. Freeze Frame
14. I/M Readiness
15. O2 Monitor Test
16. On-Board Mon Test
17. Component Test
18. Vehicle Info.
19. Modules Present
20. Unit of Measure
21. State Emission
22. Read All DTCs
23. Read Stored DTCs
24. Read Pending DTCs
25. Detailed help information
26. Capable of showing probable cause of a DTCs.
27. Up to 161 data items,each of them is with online help information.
28. Reset engine MIL
29. This operation will erase all DTCs , freeze frame Data , oxygen sensor data, and reset IM Monitors and MIL.

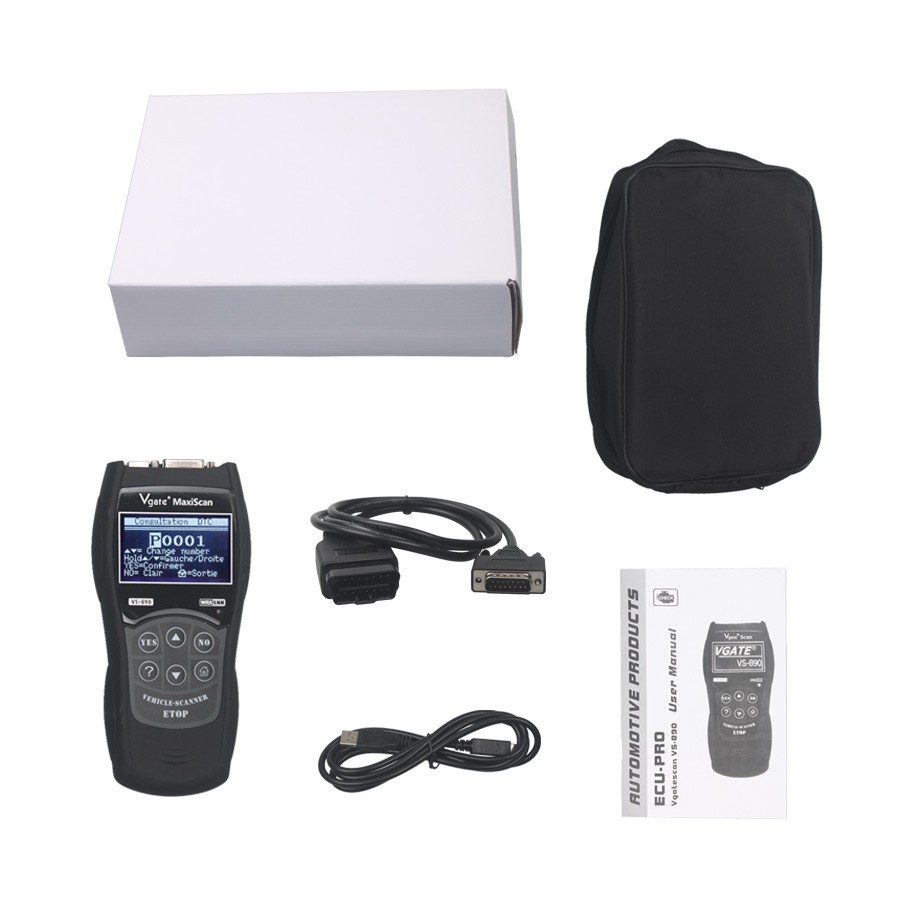

Package List:

Main Unit
LCD:128×64 Black Mask LCD
Visible view:67mm×40mm
Cable:J1962 120cm
Package: Paper board box
