Wellon Programmer VP-390 VP390

Be the first to review this product

Availability: In stock

$145.00
SKU: TSS-E035
OR

Quick Overview

Wellon Programmer VP-390 VP390


1.affordable, reliable, and fast universal device programmers.
2.No interface card is necessary to plug the module into a PC (this feature is especially handy for laptop users).
3.The menu-driven software interface makes them easy to operate.

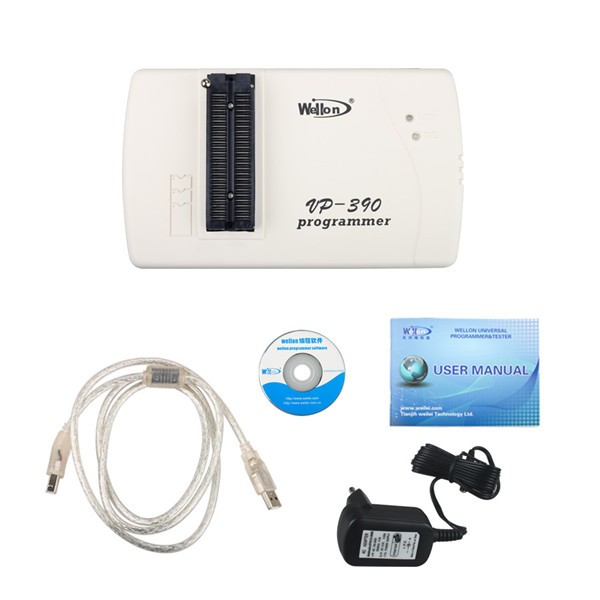

Wellon Programmer VP-390 VP390

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Wellon Programmer VP-390 VP390

Operating System: Windows XP/Vista/ Windows 7 (32Bit and 64Bit)
Supports Multi-Languages: English, Korean, Polish, Italian, Portuguese, Dutch, Turkish, Hungary, Chinese(Simplified) and Chinese(Traditional)

Specification:

Electrical spec. of the AC adapter: AC input 100V to 240V, 50/60Hz; DC output 9V / 0.6A
48 Pin ZIF socket with universal pin-drivers.
Interface with LAPTOP, PC or compatibles through USB port
Accepts standard file formats: JEDEC, INTEL (Extended) HEX, HOLTEK, EMC(.CDS), INTEL HEX16, Motorola S record
Manages 16 and 32-bit word split (Set Programming)
Features Test Vector capability and multiarray fuse map editor
Test TTL/CMOS logic ICs and Dynamic/Static Random Access Memory devices
Optimum programming for each individual device
Automaticly Identifies the manufacturer and type of E(E)PROMs, Auto identifies TTL/CMOS logic IC
Device insertion and poor-pin-contact check
Support 1.5v Low voltage devices
Not need exterior adapter for mostly devices.
Universal DIP, PLCC, QFP, TSOP, PSOP, SOIC, SSOP, SDIP adapters
Auto-run mode starts programming automatically upon detection of chip insertion
PROM: N/CMOS E(E)PROM, SeriesE(E)PROM, and FLASH Memory
PLD: CPLD, EPLD, GAL,PEEL,PALCE and more
Microcontroller: Atmel, Intel, Microchip, Signetics, Zilog, etc.

IC TEST:

TTL (74 series), CMOS (40/45 series) Logic IC
DRAM (4164, 41464 ...), SRAM (2114, 6116 ...) Memory Device

Additional Information

Condition N/A
Brand N/A
Compatible Model N/A
Manufacturer Part Number N/A
Type N/A
Color N/A
Size N/A
Weight (Kg) 0.7000
Material N/A
Battery Info N/A
Number in Pack N/A
