Wellon SmartPRO X8-PLUS Universal Programmer Update Free Life-time

Be the first to review this product

Availability: In stock

$341.00
SKU: TSS-E095
OR

Quick Overview

Wellon SmartPRO X8-PLUS Universal Programmer Update Free Life-time

Wellon SmartPRO X8-PLUS Universal Programmer Update Free Life-time

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Details

Wellon SmartPRO X8-PLUS Universal Programmer Update Free Life-time

SmartPRO X8-PLUS Functions and features:

SmartPRO X8-PLUS supports M0 and M3 chips built by mainstream manufacturers, such as NXP, STM, Freescale, NUVOTON, FUJITSU and ATMEL. Besides, most M0, M3 chips are burned through parallel interfaces in X8 programmer, taking about less than half the time than that through serial connectors.

SmartPRO X8-PLUS supports storages with common protocol standards. External memory chips are usually needed when using M0 and M3 chips. Most of these external memory chips are using SPI, IIC, NOR protocols, etc. These low capacity storages have full support in X8 programmer.

SmartPRO X8-PLUS Parameter Specifications:

Model:SmartPRO X8-PLUS
Device Support:EPROM, Paged EPROM, Parallel and serial EEPROM, FPGA Serial PROM, NOR FLASH, BPROM, NVRAM, CPLD, MCU, Firmware HUB, ARM, Standard Logic Devices (TTL\CMOS), etc. 1.8 - 9V working voltage.
Packaging Support:DIP, SDIP, PLCC, JLCC, SOIC, QFP, TQFP, PQFP, VQFP, TSOP, SOP, TSOPII, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, μBGA, CSP, SCSP, etc.
Communication Interface:USB 2.0 (High Speed)
Offline Mode Storage:No built-in electrical hard disk, a Compact FLASH card
Optional configuration:Adapter
Electrical Specification: Input electricity: AC 100V-240V/47-63Hz
                                                 Output electricity: 12V/2A
Product Specification    Main unit specification: 280mm×170mm×57mm (L×W×H)
                                           Weight: 0.5Kg(1.08 Pounds)

SmartPRO X8-PLUS Software is user friendly, and free life-time software updates are available!

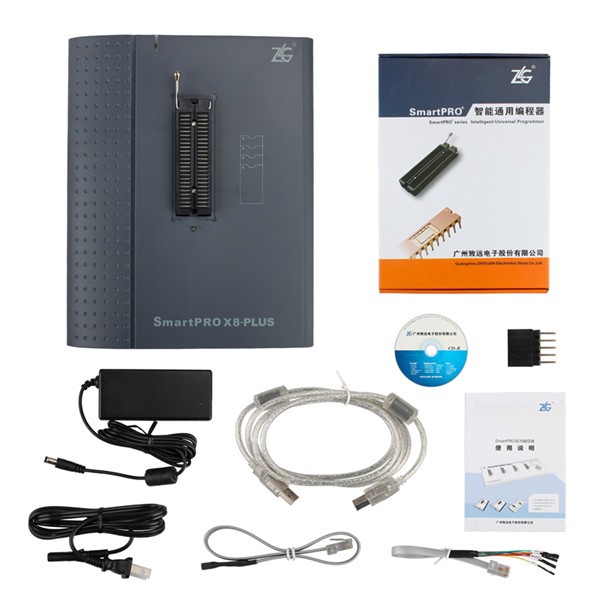

Package including:

1pc x SmartPRO X8-PLUS Programmer
1pc x USB Cable
1pc x CD
1pc x User's Manual
1pc x ICP Downloading cable
1pc x AC/DC Adapter
